Advantages of the ball mount
The ball mount is the most elegant installation option for your camera heads: the camera is integrated directly into the sheet metal wall, making it a discreet part of the machine interior.

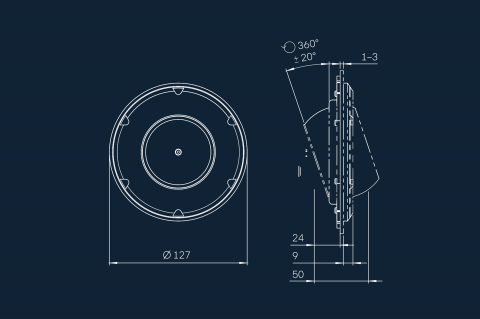

- Within the ball mount, the camera can be tilted by ±20° and rotated 360°.
- Because it protrudes only minimally into the workspace, chip nests hardly form in this area.
Installing the ball mount
The ball mount can be installed entirely from within the machine’s working area. There are two installation variants:
- Variant A: A mounting cut-out with a diameter of 115 mm is required. The housing of the ball mount can then be installed in the cut-out using the counterholder.
- Variant B: A mounting cut-out with a diameter of 98 mm including 6 × M5 threaded holes is required. The housing of the ball mount can then be screwed directly into the sheet metal wall without the counterholder.
